技術參數
/ TECHNICAL PARAMETERS| 型號 Model NO. | BN800 |

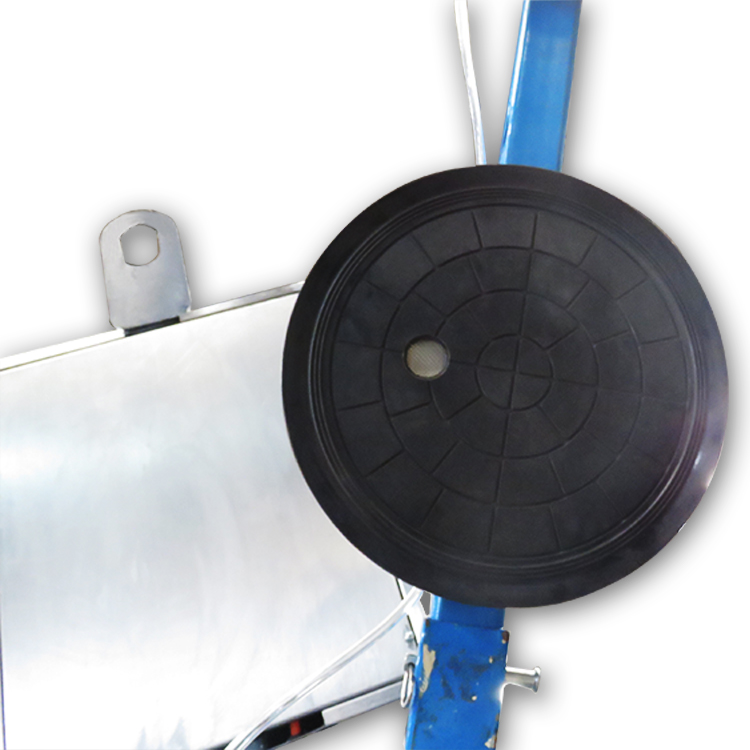

| 吸盤數量和直徑 Quantity & Diameter of Cup | 8pcs (300mm) |
| 產品的水平/垂直承重力 Working Load Limit(Horisontal/Vertical) | (水平)Horizontal:960kgs (垂直)Vertical:800kgs |
| 電源充電器 Power of Charger | 230AC 50/60Hz |
| 產品的重量 Weight of Product | 115kgs |
| 產品尺寸 Size of Product | 1623×2189mm |
| 遙控 Remote-control | |
| 電池 Power Supply | 2pcs AAA battery |
| 調制類型 Modulation Type | FM |
| 頻率 Frequency | ＜100m |
| 響應時間 Responding Time | ＜100ms |
| 防護等級 Protection Level | IP65 |
| 傾斜與翻轉電機 Tilt and Rotation Motor | |
| 電機功率 Motor Power | 24V 72W |
| 電機電流 Motor Current | 3.0A |
| 最大轉矩 Max. Torque | 20N/m |
| 吸盤架的翻轉速度 Rotation Speed of Sucker Head | 1.0rpm |
| 90度傾斜的運行速度 Tilt Speed to 90 Degrees | 35 sec |
